Cup Filling & Sealing Machines
Rotary Cup Filling and Capping Machine
The Automatic Rotary Cup Filling and Capping Machine is designed for automatic filling and capping of sauces, pastes and other liquid or semi-liquid products into preformed cups or containers.
Specifications
- Description
- Automatic Cup Filling & Capping Machine
- Packing Speed
- 1500-1800 pcs/hour
- Heating Power
- 1kw
- Air comsumption
- 0.6-0.8 m3/min
- Voltage
- 220V, 50Hz
- Machine Size
- 1260*1060*1650mm
- Machine Weight
- 300kg
Automatic Rotary Cup Filling and Capping Machine
The Automatic Rotary Cup Filling and Capping Machine is designed for automatic filling and capping of sauces, pastes and other liquid or semi-liquid products into preformed cups or containers.
This machine integrates automatic cup dropping, filling, lid feeding, lid pressing and finished product discharge into one continuous packaging process.
With a compact 8-station rotary design and a production capacity of approximately 1,500–1,800 cups per hour, it is an efficient packaging solution for food manufacturers looking to reduce manual operation and improve production consistency.
One of our machines has been customized for filling Chimichurri and Pesto sauces, providing a complete automatic cup filling and capping solution from empty cup feeding to finished product discharge.
How the Machine Works
The complete automatic process includes:
Automatic Cup Dropping → Sauce Filling → Automatic Lid Feeding → Lid Pressing → Finished Product Discharge
1. Automatic Cup Dropping
Empty cups are automatically separated and placed into the rotary holders, reducing manual cup feeding and maintaining continuous production.

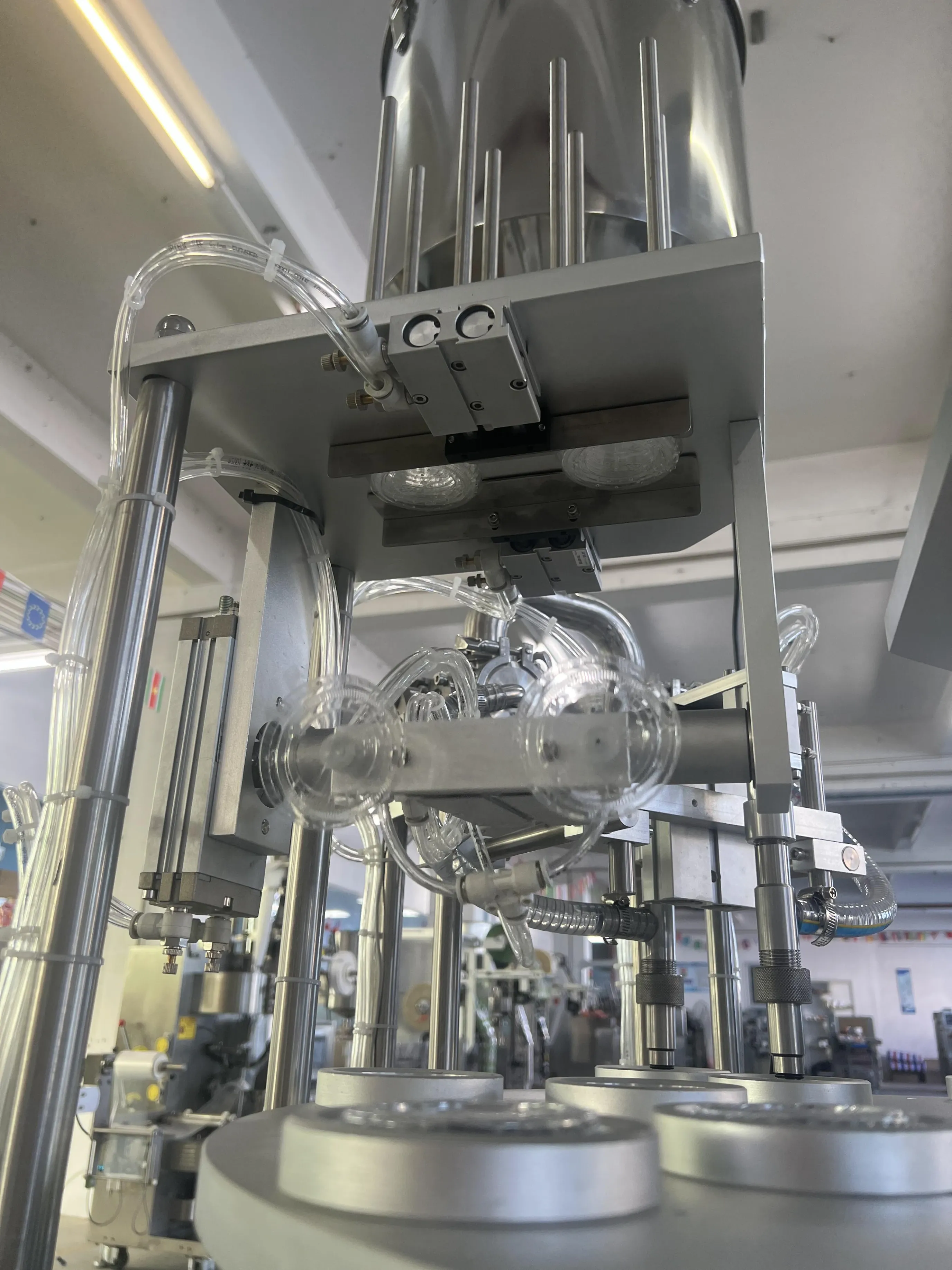

2. Automatic Sauce Filling
The filling system automatically dispenses the preset amount of product into each cup.
The filling system can be configured according to the characteristics of the customer's product, such as viscosity, flowability, filling volume and temperature.
3. Automatic Lid Feeding
After filling, lids are automatically supplied and positioned onto the cups.
The lid-feeding system is customized according to the customer's cup and lid dimensions to ensure stable positioning during continuous operation.
4. Automatic Lid Pressing
The lids are automatically pressed firmly onto the cups to complete the capping process.
This solution is particularly suitable for products that use preformed plastic lids or snap-on lids and do not require film heat sealing.
5. Automatic Finished Product Discharge
After filling and capping, the finished cups are automatically discharged from the rotary system for collection or connection to the next production process.
Suitable for Chimichurri & Pesto Sauce
This machine has been successfully customized for packaging:
- Chimichurri sauce
- Pesto sauce
Both products require the filling system to be selected according to their actual characteristics.
For sauces containing herbs, oil, spices or small particles, we recommend providing product information or samples before production so that the filling system can be properly configured and tested.
Suitable Applications
In addition to Chimichurri and Pesto, the machine can be customized for various liquid and semi-liquid products, including:
- Tomato sauce
- Chili sauce
- Garlic sauce
- Salad dressing
- Mayonnaise
- Dipping sauce
- Condiments
- Fruit sauce
- Jam
- Other liquid and semi-liquid food products
The final machine configuration should be confirmed according to the actual product characteristics and packaging requirements.
Main Features
8-Station Rotary Design
The machine uses an 8-station rotary working system with a turntable diameter of approximately 750 mm.
Different operations are completed at different stations, allowing cup feeding, filling, lid placement, capping and discharge to operate continuously within a compact machine footprint.
Two-Cup Output
The machine is designed with a two-cup output configuration, helping increase production capacity while maintaining a compact rotary structure.
Production capacity can reach approximately:
1,500–1,800 cups/hour
Actual speed depends on cup dimensions, filling volume, product characteristics and operating conditions.
Customized Filling System
The filling system can be selected and customized according to:
- Product viscosity
- Product flowability
- Particle content
- Filling volume
- Filling temperature
- Required filling accuracy
This is especially important for sauces such as Pesto and Chimichurri because their characteristics can differ significantly from ordinary homogeneous liquids.
Customized Cup & Lid Handling
Cup holders, cup-dropping devices and lid-feeding systems are customized according to the customer's actual packaging containers.
Customers are recommended to provide cup and lid samples before machine production.
Compact Rotary Structure
Compared with a long linear production line, the rotary structure integrates multiple packaging processes around one turntable, helping reduce the required installation space.
The approximate machine dimensions are:
1260 × 1060 × 1650 mm
PLC & Touchscreen Control
The machine can be operated through a user-friendly control system, allowing operators to manage the packaging process and adjust relevant production settings conveniently.
Technical Specifications
Item | Specification |
|---|---|
Machine Type | Automatic Rotary Cup Filling and Capping Machine |
Working System | 8-station rotary system |
Turntable Diameter | 750 mm |
Output Configuration | Two cups per cycle |
Production Capacity | 1,500–1,800 cups/hour |
Filling Product | Liquid and semi-liquid products |
Cup Feeding | Automatic |
Filling | Automatic |
Lid Feeding | Automatic |
Capping Method | Automatic lid pressing |
Finished Product Discharge | Automatic |
Heating Power | 1 kW |
Air Consumption | Approx. 0.6 m³/min |
Power Supply | 220V, 50Hz |
Machine Dimensions | Approx. 1260 × 1060 × 1650 mm |
Machine Weight | Approx. 300 kg |
Production capacity is approximately 1,500–1,800 cups per hour and may vary depending on cup dimensions, filling volume, product characteristics and machine configuration.
Customized According to Your Product
Cup filling and capping machines should not be selected based only on production speed.
Different sauces can have very different characteristics. Before recommending the machine configuration, we evaluate the customer's:
- Product type
- Product viscosity
- Particle size
- Filling temperature
- Filling volume per cup
- Cup dimensions
- Lid dimensions and material
- Required production capacity
Based on this information, the filling system, cup holders, filling nozzles and lid-handling system can be customized for the application.
What Information Do We Need?
To recommend a suitable machine, please provide:
- Product name and photos or videos
- Product characteristics and viscosity
- Whether the product contains particles
- Filling volume per cup
- Cup dimensions and photos
- Lid dimensions and photos
- Required production capacity
- Factory voltage and frequency
For special sauces or products containing particles, sending samples for machine testing is highly recommended.
Get a Customized Cup Filling & Capping Solution
Looking for an automatic solution for filling sauces into cups and automatically placing and pressing the lids?
Send us your product information, cup dimensions, filling volume and required capacity.
Enotech Machinery can customize the machine according to your actual product and packaging requirements and provide machine testing before shipment.
